TSC

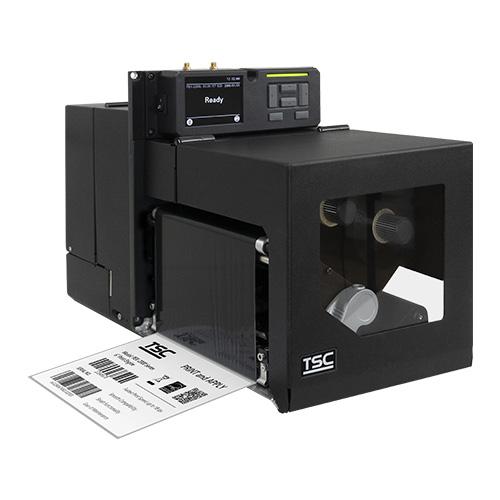

TSC PEX-2000 Series Print Engine

The TSC PEX-2000 Series is a print engine for print-and-apply systems and automated labelling lines, built into an applicator or production machine rather than standing on a desk. It prints thermal transfer and direct thermal, has a 3.5-inch colour LCD, USB, RS232, Ethernet, parallel and a GPIO (DB15F) port for line control, and comes in 4-inch and 6-inch widths at up to 600 dpi, as left-hand or right-hand versions.

Print engine for print-and-apply systems and automated labelling lines
4-inch at 203, 300 or 600 dpi; 6-inch at 203 or 300 dpi
Thermal transfer and direct thermal with a 3.5-inch colour LCD
USB, RS232, Ethernet, parallel and GPIO (DB15F) on every version
Left-hand (L) or right-hand (R) versions for integrators and machine builders

Thermal transfer203 / 300 / 600 dpiMax. print width 168 mm

Price from 3.833,74 €+VAT

● In stock10 versions

Choose your version Bulk / project pricing

Resolution

In stock only

TSC PEX-2000 · Thermal transfer · 600 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, left-hand

Part number PEX-2640L-A001-0002

Thermal transfer600 dpiLCD4-inch, left-handUSBRS232EthernetParallel

Out of stock

5.129,40 €+VAT

View

TSC PEX-2000 · Thermal transfer · 600 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, right-hand

Part number PEX-2640R-A001-0002

Thermal transfer600 dpiLCD4-inch, right-handUSBRS232EthernetParallel

Out of stock

5.129,40 €+VAT

View

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, right-hand

Part number PEX-2360R-A001-0002

Thermal transfer300 dpiLCD6-inch, right-handUSBRS232EthernetParallel

Out of stock

4.513,51 €+VAT

View

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, left-hand

Part number PEX-2360L-A001-0002

Thermal transfer300 dpiLCD6-inch, left-handUSBRS232EthernetParallel

Out of stock

4.513,51 €+VAT

View

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, right-hand

Part number PEX-2340R-A001-0002

Thermal transfer300 dpiLCD4-inch, right-handUSBRS232EthernetParallel

Out of stock

3.963,96 €+VAT

View

TSC PEX-2000 · Thermal transfer · 300 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, left-hand

Part number PEX-2340L-A001-0002

Thermal transfer300 dpiLCD4-inch, left-handUSBRS232EthernetParallel

Out of stock

3.963,96 €+VAT

View

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, right-hand

Part number PEX-2260R-A001-0002

Thermal transfer203 dpiLCD6-inch, right-handUSBRS232EthernetParallel

In stock

4.357,08 €+VAT

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 6-inch, left-hand

Part number PEX-2260L-A001-0002

Thermal transfer203 dpiLCD6-inch, left-handUSBRS232EthernetParallel

In stock

4.357,08 €+VAT

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, right-hand

Part number PEX-2240R-A001-0002

Thermal transfer203 dpiLCD4-inch, right-handUSBRS232EthernetParallel

Out of stock

3.833,74 €+VAT

View

TSC PEX-2000 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · 4-inch, left-hand

Part number PEX-2240L-A001-0002

Thermal transfer203 dpiLCD4-inch, left-handUSBRS232EthernetParallel

Out of stock

3.833,74 €+VAT

View

In stock only

Product	Size (W × H)	Material	Labels / roll	Core	Price
Tsc W: 148 mm38-G148210-11LF	148 × 210 mm	Normal Paper	800	76 mm	33,66 €+VATIn stock
Tsc W: 102 mm38-T102102-10LF	102 × 102 mm	Thermal Paper	1700	76 mm	25,00 €+VATIn stock
Tsc W: 148 mm38-T148210-11LF	148 × 210 mm	Thermal Paper	800	76 mm	42,57 €+VATIn stock
Tsc W: 102 mm38-G102076-10LF	102 × 76 mm	Normal Paper	2300	76 mm	24,43 €+VATOut of stock	View
Tsc W: 148 mm38-G148210-10LF	148 × 210 mm	Normal Paper	800	76 mm	31,26 €+VATOut of stock	View
Tsc W: 55 mm38-G055070-10LF	55 × 70 mm	Normal Paper	2400	76 mm	14,62 €+VATOut of stock	View
Tsc W: 75 mm38-G075050-10LF	75 × 50 mm	Normal Paper	3000	76 mm	19,03 €+VATOut of stock	View
Tsc W: 90 mm38-G090036-10LF	90 × 36 mm	Normal Paper	4000	76 mm	23,74 €+VATOut of stock	View
Tsc W: 115 mm38-G115170-10LF	115 × 170 mm	Normal Paper	1000	76 mm	28,80 €+VATOut of stock	View
Tsc W: 130 mm38-G130100-10LF	130 × 100 mm	Normal Paper	1700	76 mm	30,59 €+VATOut of stock	View
Tsc W: 135 mm38-G135083-10LF	135 × 83 mm	Normal Paper	2000	76 mm	31,16 €+VATOut of stock	View
Tsc W: 165 mm38-G165214-10LF	165 × 214 mm	Normal Paper	750	76 mm	39,87 €+VATOut of stock	View
Zebra Z-Perform 1000T76524	148 × 210 mm	Normal Paper	700	76 mm	31,49 €+VATIn stock
Zebra Z-Perform 1000T76180	101.6 × 152.4 mm	Normal Paper	950	76 mm	22,53 €+VATIn stock
Zebra Z-Ultimate 3000T White880350-152	101.6 × 152.4 mm	Synthetic	950	76 mm	133,81 €+VATIn stock
Zebra PolyE 3100T Gloss3011714	148 × 210 mm	Synthetic	650	76 mm	53,98 €+VATIn stock
Zebra Z-Perform 1000T3005091	100 × 150 mm	Normal Paper	1000	76 mm	25,34 €+VATIn stock
Zebra Z-Perform 1000T3001699	148 × 210 mm	Normal Paper	800	76 mm	34,64 €+VATIn stock
Zebra Z-Ultimate 3000T880350-050	101.6 × 50.8 mm	Synthetic	2740	76 mm	133,81 €+VATIn stock
Zebra Z-Select 2000T3006326	101.6 × 76.2 mm	Normal Paper	2238	76 mm	37,16 €+VATIn stock
Zebra Z-Select 2000T76089	148 × 209.55 mm	Normal Paper	700	76 mm	43,32 €+VATIn stock
Zebra Z-Ultimate 3000T White880350-101	101.6 × 101.6 mm	Synthetic	1432	76 mm	133,81 €+VATIn stock
Zebra Z-Select 2000T76060	101.6 × 152.4 mm	Normal Paper	950	76 mm	32,27 €+VATIn stock
Zebra Z-Perform 1000T3004645	100 × 100 mm	Normal Paper	1670	76 mm	22,53 €+VATIn stock
Zebra Z-Perform 1000T87985	101.6 × 152.4 mm	Normal Paper	950	76 mm	23,07 €+VATIn stock
Zebra Z-Select 2000T76059	101.6 × 63.5 mm	Normal Paper	2220	76 mm	32,27 €+VATIn stock
Zebra Z-Perform 1000T200957	105 × 148 mm	Normal Paper	1127	76 mm	24,01 €+VATIn stock
Zebra Z-Perform 1000T87394	100 × 50 mm	Normal Paper	2820	76 mm	22,53 €+VATIn stock
Zebra Z-Perform 1000T76179	101.6 × 63.5 mm	Normal Paper	2220	76 mm	22,53 €+VATIn stock
Zebra Z-Select 2000T800640-605	101.6 × 152.4 mm	Normal Paper	1142	76 mm	36,22 €+VATIn stock

In stock only

Product	Width	Length	Type	Ink side	Core	Price
TSC 8050-SWX Wax Ribbon 110 mm × 300 mP159049-001	110 mm	300 m	Wax	Outside	25.4 mm	4,69 €+VATIn stock
TSC 8050-SWX Wax Ribbon 110 mm × 450 mP159079-001	110 mm	450 m	Wax	Outside	25.4 mm	7,04 €+VATIn stock
TSC 8580-PWR Wax/Resin Ribbon 60 mm × 450 mP159064-001	60 mm	450 m	Wax/Resin	Outside	25.4 mm	13,23 €+VATIn stock
TSC 8550-SWR Wax/Resin Ribbon 83 mm × 450 mP159069-001	83 mm	450 m	Wax/Resin	Outside	25.4 mm	13,90 €+VATOut of stock	View
TSC 8600-SRE Resin Ribbon 110 mm × 300 mP159053-001	110 mm	300 m	Resin	Outside	25.4 mm	24,09 €+VATOut of stock	View
TSC 8580-PWR Wax/Resin Ribbon 110 mm × 450 mP159082-001	110 mm	450 m	Wax/Resin	Outside	25.4 mm	24,26 €+VATOut of stock	View
TSC 8550-SWR Wax/Resin Ribbon 110 mm × 300 mP159051-001	110 mm	300 m	Wax/Resin	Outside	25.4 mm	12,29 €+VATOut of stock	View
TSC 8300-PWX Wax Ribbon 110 mm × 300 mP159050-001	110 mm	300 m	Wax	Outside	25.4 mm	10,19 €+VATOut of stock	View
TSC 8300-PWX Wax Ribbon 110 mm × 450 mP159080-001	110 mm	450 m	Wax	Outside	25.4 mm	15,27 €+VATOut of stock	View
TSC 8600-SRE Resin Ribbon 110 mm × 450 mP159083-001	110 mm	450 m	Resin	Outside	25.4 mm	36,15 €+VATOut of stock	View
TSC 8050-SWX Wax Ribbon 110 mm × 600 mP159130-001	110 mm	600 m	Wax	Outside	25.4 mm	9,38 €+VATOut of stock	View
TSC 8550-SWR Wax/Resin Ribbon 110 mm × 600 mP159133-001	110 mm	600 m	Wax/Resin	Outside	25.4 mm	24,58 €+VATOut of stock	View
Zebra 2300 Wax Ribbon 110 mm × 450 m02300BK11045	110 mm	450 m	Wax	Outside	25.4 mm	12,19 €+VATIn stock
Zebra 2300 Wax Ribbon 110 mm × 300 m02300BK11030	110 mm	300 m	Wax	Outside	25.4 mm	8,30 €+VATIn stock
Zebra 3200 Wax/Resin Ribbon 110 mm × 450 m03200BK11045	110 mm	450 m	Wax/Resin	Outside	25.4 mm	25,19 €+VATIn stock
Zebra 2100 Wax Ribbon 106 mm × 450 m02100BK10645	106 mm	450 m	Wax	Outside	25.4 mm	13,66 €+VATIn stock
Zebra 5095 Resin Ribbon 110 mm × 450 m05095BK11045	110 mm	450 m	Resin	Outside	25.4 mm	51,67 €+VATIn stock
Zebra 3200 Wax/Resin Ribbon 110 mm × 300 m03200BK11030	110 mm	300 m	Wax/Resin	Outside	25.4 mm	16,98 €+VATIn stock
Zebra 5095 Resin Ribbon 110 mm × 300 m05095BK11030	110 mm	300 m	Resin	Outside	25.4 mm	34,59 €+VATIn stock
Zebra 2100 Wax Ribbon 110 mm × 450 m02100BK11045	110 mm	450 m	Wax	Outside	25.4 mm	14,18 €+VATIn stock
Zebra 4800 Resin Ribbon 110 mm × 450 m04800BK11045	110 mm	450 m	Resin	Outside	25.4 mm	35,90 €+VATIn stock
Zebra 3400 Wax/Resin Ribbon 110 mm × 450 m03400BK11045	110 mm	450 m	Wax/Resin	Outside	25.4 mm	19,98 €+VATIn stock
Zebra 2300 Wax Ribbon 110 mm × 300 m02300GT11030	110 mm	300 m	Wax	Outside	25.4 mm	8,72 €+VATIn stock
Zebra 2300 Wax Ribbon 102 mm × 450 m02300BK10245	102 mm	450 m	Wax	Outside	25.4 mm	11,30 €+VATIn stock
Zebra 2300 Wax Ribbon 60 mm × 450 m02300BK06045	60 mm	450 m	Wax	Outside	25.4 mm	6,65 €+VATIn stock

In stock only

Product	Price
TSC Ribbon SaverRS-PEX-2000-0002	928,94 €+VATIn stock
TSC RFID AssyRFID-PEX-2240R-0001	2.006,24 €+VATOut of stock	View
TSC Printhead AssyPH-PEX-2240-0001	494,79 €+VATOut of stock	View
Cleaning Kits36-0000010-00LF	24,38 €+VATIn stock

Which version?

Read the part number as PEX-2 + resolution + width + 0 + side: resolution 2 = 203 dpi, 3 = 300 dpi, 6 = 600 dpi; width 4 = 4-inch (104 mm), 6 = 6-inch (168 mm); side L = left-hand, R = right-hand.

Resolution	4-inch (104 mm)	6-inch (168 mm)
203 dpi	PEX-2240L / PEX-2240R	PEX-2260L / PEX-2260R
300 dpi	PEX-2340L / PEX-2340R	PEX-2360L / PEX-2360R
600 dpi	PEX-2640L / PEX-2640R	—

Left- and right-hand versions are mirror images, so the engine can be mounted on either side of the line. RFID assemblies for the 203 dpi engines, ribbon savers and spare printheads are listed as accessories.

PEX-2000 or PEX-1000?

Choose the PEX-2000 Series when you need 300 or 600 dpi or a 6-inch print width. The TSC PEX-1000 Series versions we offer are 4-inch, 203 dpi engines, also available left- or right-hand.

All PEX-2000 Series print engines below are CE certified and covered by manufacturer warranty. Match the ribbon to the label material — see our ribbons and labels.

Looking for other print engines? See all print engines → Need a stand-alone printer instead? See the industrial label printers →
