TSC PEX-2000 Series (PEX-2240R-A001-0002)

The TSC PEX-2240R is a 4-inch print engine from the PEX-2000 Series, built to be integrated into automatic label applicators and print-and-apply systems. A robust die-cast mechanism, an angle-adjustable peel-off module and precise registration – print deviation within ±0.4 mm and labels from just 5 mm – keep production and logistics lines running 24/7. It prints in thermal transfer and direct thermal at 203 dpi and up to 457 mm/s with a print width of 104 mm, uses 600 m ribbons and connects via GPIO (DB15F) + parallel, USB, RS-232, Ethernet and two USB host ports. This version, PEX-2240R-A001-0002, is the right-hand (RH) version – choose the orientation that matches the media path of your applicator.

Key Features

• Easy applicator integration – a compact die-cast print engine that mounts in any orientation; supports DB15 and DB25 GPIO interfaces and the GPIO emulations of major printer brands.
• Left-hand and right-hand versions – mirror-image models for either side of the applicator; this unit is the right-hand version (RH).
• Thermal transfer and direct thermal – up to 457 mm/s at 203 dpi with a maximum print width of 104 mm.
• Precise on small labels – print deviation within ±0.4 mm and a switchable small-label mode for labels from 5 mm long; top or bottom black-mark sensing for pre-printed media.
• Angle-adjustable peel-off – peeling works at angles from −18° to −3° for reliable label dispensing onto the applicator pad.
• Wide media range – media 16–118 mm wide and 0.076–0.305 mm thick (RFID tags up to 1.2 mm); continuous, die-cut, black-mark, notched and fanfold media fed from the applicator's unwinder.

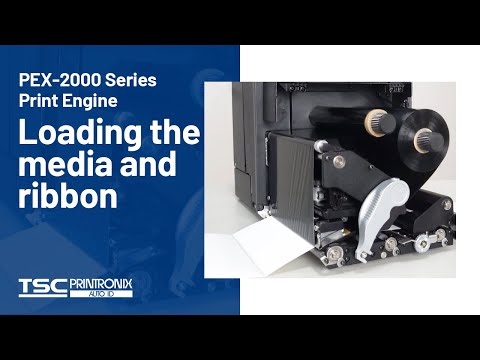

• 600 m ribbons – long ribbons (1-inch core, ink coated inside or outside) mean fewer changes; the optional Ribbon Saver moves the ribbon only when it is actually needed.
• Connected as standard – GPIO (DB15F) + Centronics parallel, USB 2.0, RS-232, 10/100 Ethernet and two USB host ports (front and rear); options: DB25F GPIO, Wi-Fi 802.11ac + Bluetooth 4.2 module and internal Bluetooth.
• 3.5-inch colour display – multi-language IPS display with six buttons and a status indicator for simplified media handling and calibration.
• Customisable printer languages – TSPL-EZD with EPL, ZPL, ZPL II and DPL compatibility (TSPL-EZS with SBPL as an option), so existing templates and print files stay the same.
• Remote management – monitor print engines on the SOTI Connect dashboard and deploy, monitor and troubleshoot them with TSC Console.
• Built for 24/7 uptime – robust metal chassis, MTBF up to 22,000 hours, a magnetic media door lock, effortless printhead replacement and a compact rear chassis for quick component swaps.
• Upgrade options – UHF RFID encoder, Ribbon Saver, DB25F GPIO, Wi-Fi + Bluetooth module and internal Bluetooth 5.0 MFi (factory option).

Ideal Applications

• Print and apply – automatic labelling of cartons, cases and products on packaging lines
• Transport and logistics – pallet labelling and carton shipping labels
• Manufacturing – automotive, food and beverage product identification
• Healthcare – pharmaceutical labelling

All PEX-2000 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which PEX-2000 should you choose? Pick the print width (4-inch / 104 mm or 6-inch / 168 mm), the resolution – 203 dpi for the fastest barcode and shipping labels, 300 dpi for crisper small text and logos, 600 dpi (4-inch only) for micro labels – and the left- or right-hand version that matches your applicator. Compare other models in our Print Engines collection or contact our team for volume pricing.
