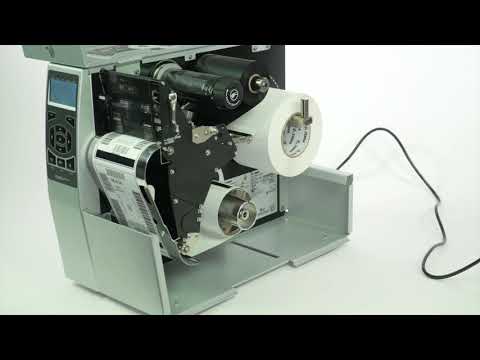

Zebra ZT510 Series Industrial Printer Media Handling Options

Zebra ZT510 Industrial Label Printer (ZT51042-T0E0000Z)

Name: Zebra ZT510 Industrial Label Printer (ZT51042-T0E0000Z)
Brand: ZEBRA
SKU: ettzt510
Availability: OutOfStock

1.698,13 € +VAT

Product variants

Resolution (dpi)

203300

Wireless

BluetoothWi-Fi 5 + Bluetooth

Series

Cutter RewinderTear-off

Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: Out Of Stock
Vendor: ZEBRA
Type: Industrial Printers
Barcode: ZT51042-T0E0000Z
Collections: Industrial Label Printers , Label Printers , Zebra ZT510

📄 Download Product Brochure (PDF)

ZEBRA

Zebra ZT510 Industrial Label Printer (ZT51042-T0E0000Z)

1.698,13 € +VAT

Description

Description

The Zebra ZT510 is a 4-inch industrial label printer that brings next-generation Zebra print performance to cost-conscious businesses: a rugged metal frame, a fast processor for complex graphics and Link-OS device management – without costly extras you don't need. A multi-line backlit display with an intuitive menu and keypad makes it easy to operate. It prints thermal transfer and direct thermal labels at 203 dpi, up to 104 mm wide and at up to 305 mm/s (12 ips). This version, ZT51042-T0E0000Z, has a tear-off bar for manual label removal; it connects via USB 2.0, RS-232 serial, Gigabit Ethernet and Bluetooth Low Energy. EU and UK power cords are included; the USB interface cable must be ordered separately.

📦 What's in the box – ZT51042-T0E0000Z

✅ Zebra ZT510 printer – 203 dpi, Thermal transfer, Tear-off, Bluetooth
✅ Built-in power supply – internal universal power supply, 90–265 V AC – no external power brick
✅ Power cords – EU (Schuko) and UK (type G) plugs with C13 connector – use the one for your country
✅ Documentation – quick start and safety documents; drivers, ZebraDesigner Essentials and manuals are a free download from Zebra
❌ USB cable – NOT included
❌ Labels and ribbon – NOT included

⚠️ Please note: no interface cable is included. To connect the printer to a PC, order a USB A-to-B cable separately – e.g. the Zebra USB cable 105850-006 or UNIV-CABL-UBA USB A-B cable. For a network connection, use a standard RJ45 Ethernet patch cable (not included).

💡 Useful extras: Zebra labels on 76 mm cores (Zebra Z-Perform 1000T 102 × 152 mm or Zebra Z-Ultimate 3000T 76 × 51 mm); Zebra 450 m ribbons (Zebra 2300 110 mm × 450 m or Zebra 3200 110 mm × 450 m); a Wi-Fi upgrade card (Wi-Fi 5 card P1083320-037C); field-installable media handling kits (cutter kit P1083347-036).

Key Features

Robust value – metal frame and thin-film printhead with E3 Element Energy Equalizer for consistently sharp print quality in high-volume environments; ENERGY STAR qualified to keep running costs down.
Simple operation – multi-line backlit display with an intuitive menu, user-friendly keypad and password protection; dynamic QR codes link to web-based help for fast troubleshooting.
Thermal transfer and direct thermal – 450 m ribbons mean fewer changes; print smudge-proof, long-life labels on paper, polyester and polypropylene, or switch to direct thermal for short-life labels.
Tear-off – upgrade in the field – cutter and rewind upgrade kits can be installed easily when your requirements change.
Flexible connectivity – USB, RS-232 serial, Gigabit Ethernet and Bluetooth Low Energy as standard; two open slots for a Wi-Fi (802.11ac), parallel or second Ethernet card, plus an optional USB Host card.
Link-OS management – ZPL / ZPL II and XML printing, optional ZBI 2.0; integrates with Zebra device management tools and popular MDM solutions; Print Touch (NFC) for easy pairing with Android devices.

Ideal Applications

Manufacturing – work-in-process, product ID and serial number labels, package labelling, receiving and put-away
Transport and logistics – order picking and packing, shipping and receiving, cross-docking and compliance labels
Retail – distribution centres and back-of-store operations
Healthcare – laboratory, blood bank, pharmacy and asset tracking labels
Chemicals – GHS / CLP hazard labels on durable synthetic materials

All ZT510 Versions

The highlighted row is the version you are currently viewing.

Part Number	Resolution	Media Handling	Connectivity
ZT51042-T0E0000Z (this version)	203 dpi	Tear-off	Bluetooth	Viewing
ZT51042-T0EC000Z	203 dpi	Tear-off	Wi-Fi 5 + Bluetooth	View product
ZT51042-T1E0000Z	203 dpi	Cutter	Bluetooth	View product
ZT51042-T2E0000Z	203 dpi	Rewinder	Bluetooth	View product
ZT51043-T0E0000Z	300 dpi	Tear-off	Bluetooth	View product
ZT51043-T0EC000Z	300 dpi	Tear-off	Wi-Fi 5 + Bluetooth	View product
ZT51043-T1E0000Z	300 dpi	Cutter	Bluetooth	View product
ZT51043-T2E0000Z	300 dpi	Rewinder	Bluetooth	View product

Technical Specifications

Part Number	ZT51042-T0E0000Z
Model	Zebra ZT510
Printer Type	4-inch industrial label printer, metal frame
Print Method	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 305 mm/s (12 ips)
Max. Print Width	104 mm (4.09 in)
Max. Print Length	3810 mm
Media Width	20 mm to 114 mm
Roll Diameter	Max. 203 mm (8 in) outer diameter on a 76 mm (3 in) core
Core Size	76 mm (3 in)
Media Thickness	0.076 mm to 0.305 mm
Media Type	Roll-fed continuous, die-cut, notched and black-mark labels and tags
Sensors	Dual media sensors: transmissive (gap) and reflective (black mark)
Ribbon	Up to 450 m on 25.4 mm (1 in) core; width 51–110 mm; ink side out
Media Handling	Tear-off (factory); field-installable cutter and rewind kits
Interfaces	USB 2.0, RS-232 serial, Gigabit Ethernet; two open slots for optional Wi-Fi, parallel or Ethernet cards; optional USB Host card
Wireless	Bluetooth Low Energy; optional dual-band Wi-Fi 5 (802.11ac) + Bluetooth card
NFC	Print Touch (NFC) tag – tap to pair Android devices and open help pages
Display	Multi-line backlit display with intuitive menu, keypad and password protection
Memory	512 MB RAM, 2 GB flash (512 MB user-available flash, 32 MB user DRAM); real-time clock
Printer Languages	ZPL, ZPL II, XML; ZBI 2.0 (optional); Link-OS
Fonts / Character Sets	16 resident expandable ZPL II bitmap fonts, 2 resident scalable ZPL fonts, Asian and international fonts, Unicode, code pages 850, 1250, 1252–1255
Barcodes	1D: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A/E, EAN-8/13 (+2/+5), Plessey, Postnet, 2-of-5 variants, Logmars, MSI, Codabar, Planet; 2D: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, TLC 39, MicroPDF, GS1 DataBar (RSS), Aztec
Options	Wi-Fi, parallel and Ethernet cards; USB Host card; cutter and rewind kits; external IPv6 print server; ZKDU keyboard display unit
Drivers & Software	Link-OS tools, ZebraDesigner, Zebra Setup Utilities, Windows drivers
Power Supply	Internal auto-detecting universal power supply (PFC), 90–265 V AC, 47–63 Hz, rated 250 W; ENERGY STAR certified
Housing	Metal frame and metal media cover
Dimensions (W × D × H)	268 × 512 × 396 mm
Weight	22.7 kg
Color	Grey / black
Operating Temperature	Thermal transfer 5 °C to 40 °C; direct thermal 0 °C to 40 °C
Storage Temperature	−30 °C to 60 °C
Humidity	20–85% non-condensing
Certifications	IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3; cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, CCC and others
Warranty	24 months
In the Box	Zebra ZT510 printer (203 dpi, tear-off; internal power supply), power cords EU + UK, quick start / safety documentation – USB interface cable, labels and ribbon NOT included

The ZT510 is Zebra's value industrial printer: 203 or 300 dpi, tear-off, cutter or rewinder, with or without Wi-Fi. For a colour touch display and more advanced options, compare it with the ZT411 / ZT421 and the high-performance ZT610 / ZT620. Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.

All Specifications

Brand	ZEBRA
Model	Zebra ZT510
SKU	ZT51042-T0E0000Z
Product Type	Version
Print Method	Thermal transfer
Print Type	Thermal Transfer
Resolution	203 dpi
Printhead Width	104 mm
Label Peeler (Dispenser)	No
Cutter	No
Internal Rewinder	No
Real-Time Clock (RTC)	Yes
Linerless Label Printing	No
RFID	No
Form Factor	4-inch
Wireless Communication	Bluetooth
Wireless Connectivity	Bluetooth
Wired Interface Type	USB, RS232, Ethernet
Display	Backlit multi-line LCD
Memory	RAM: 512 MB, Flash: 2GB
Interface Cable Included	No
In the Box	Zebra ZT510 printer (203 dpi, tear-off; internal power supply), power cords EU + UK, quick start / safety documentation – USB interface cable, labels and ribbon NOT included
Minimum Order Quantity	1
Warranty	24 months
Non Refundable	No
Non Returnable	No
Weight	24.476 kg
Datasheet	Download PDF
