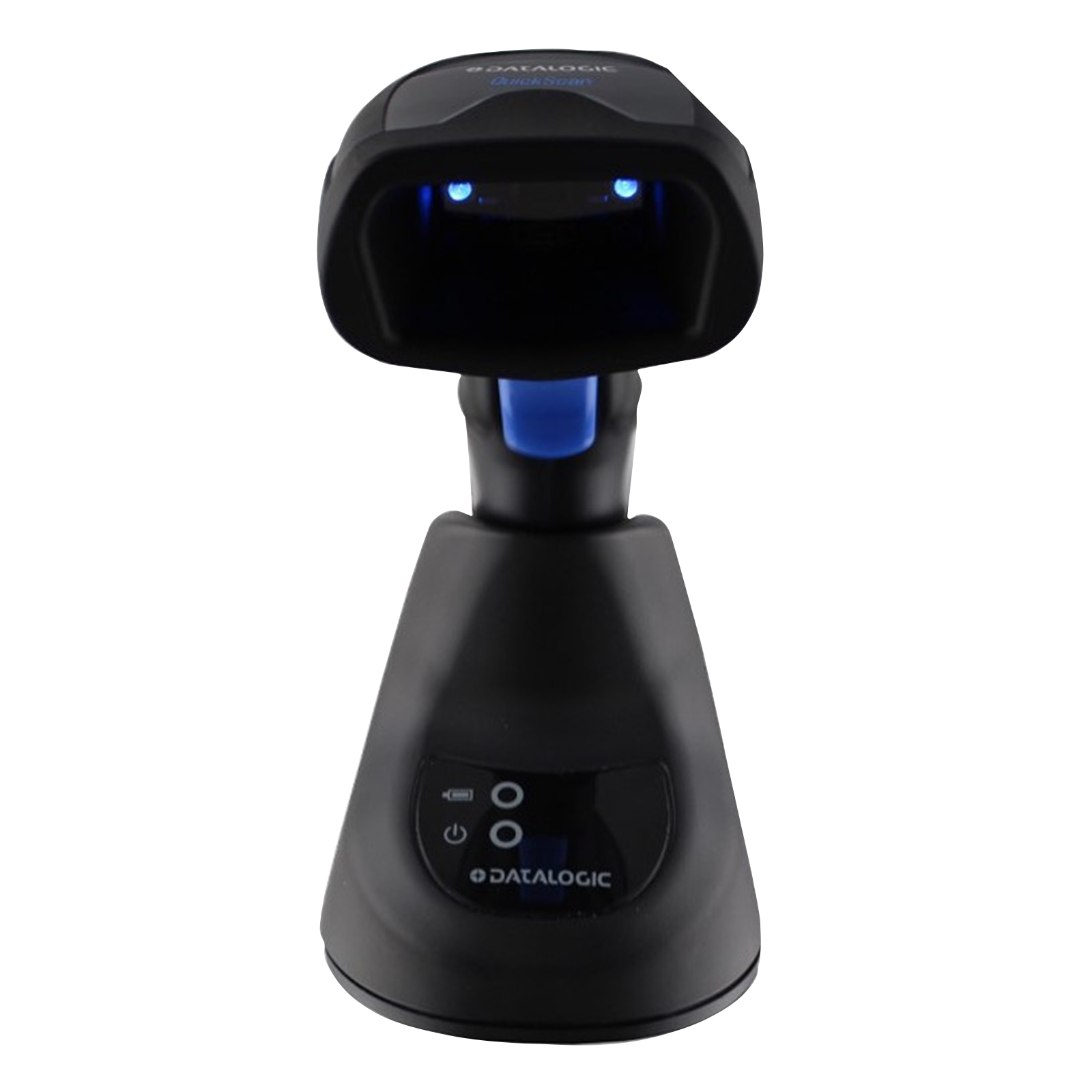

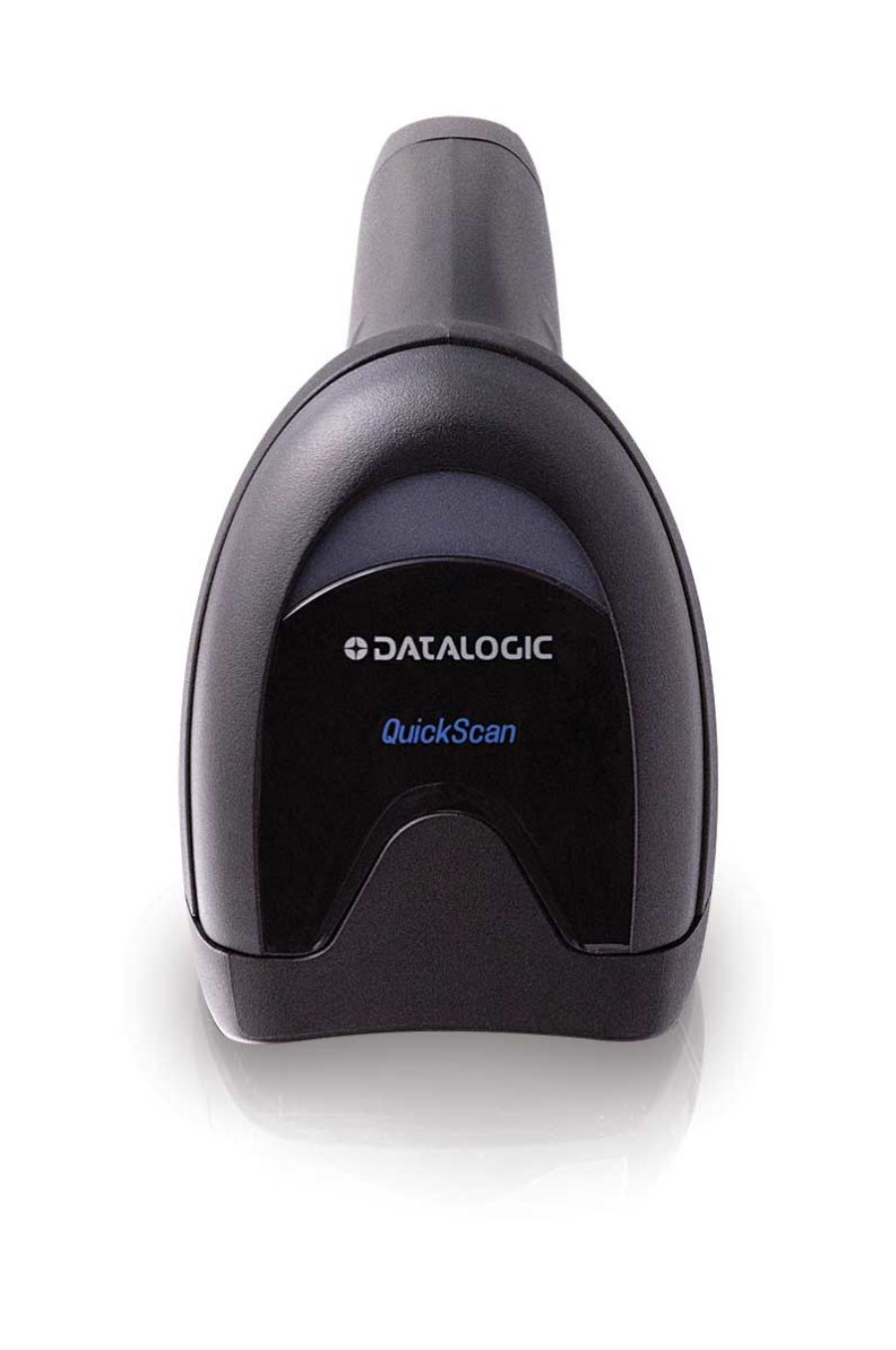

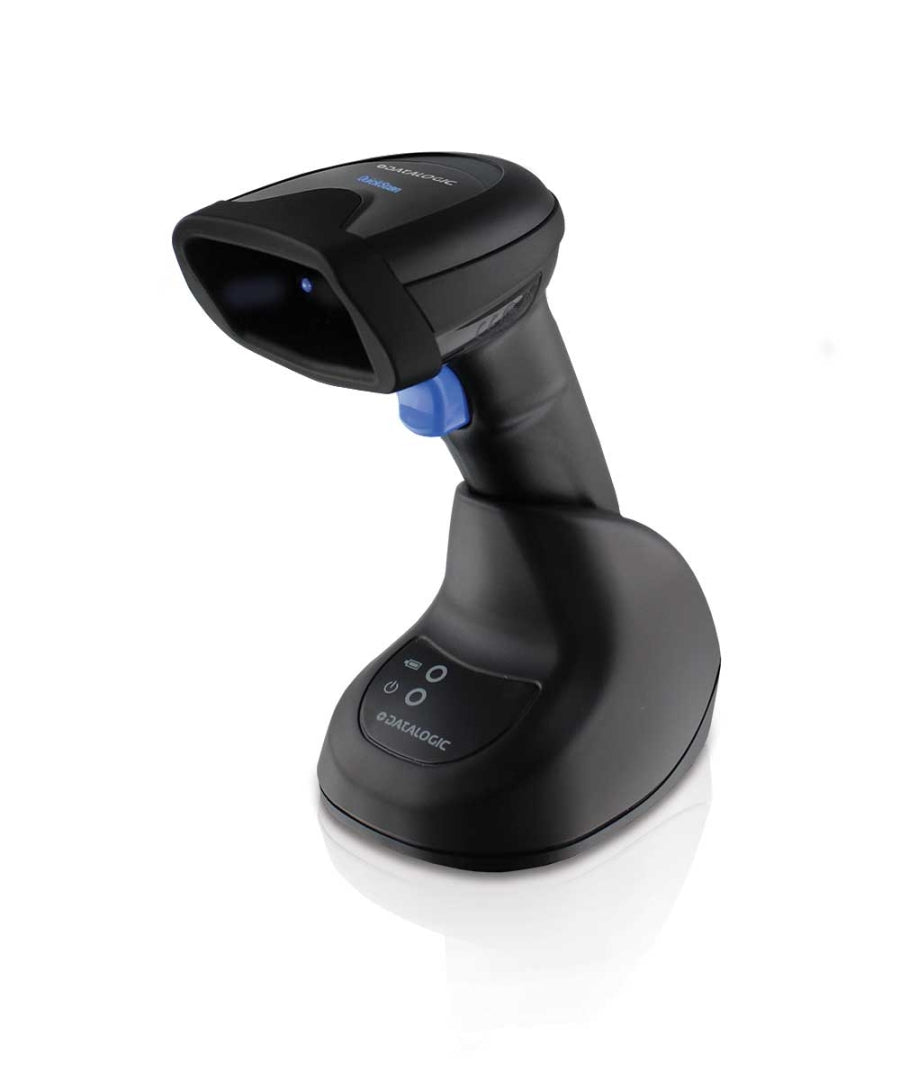

The Datalogic QuickScan QM2500 is a cordless 2D handheld barcode scanner that uses Datalogic's 433 MHz STAR radio instead of Bluetooth – for a reliable, interference-free connection even in busy shops with heavy Wi-Fi and Bluetooth traffic. Its 1 MP imager reads 1D, 2D and Digimarc codes from paper labels and phone screens, with Datalogic's Green Spot good-read confirmation. A removable 3250 mAh battery lasts for approx. 115,000 reads per charge, and the BC2090-BK-433 base station charges the scanner and connects it to your PC or POS via USB, USB-C or RS-232. It comes with a 5-year Datalogic warranty. This version, QM2500-BK-433K1, is black and is supplied as a complete USB kit with the BC2090-BK-433 base station and a 2 m USB cable, ready to plug in and scan.
📦 What's in the box – QM2500-BK-433K1
- ✅ Datalogic QuickScan QM2500 scanner – black, 2D imager, 433 MHz STAR radio
- ✅ Rechargeable battery – Li-ion, 3250 mAh, removable – charge fully before first use
- ✅ BC2090-BK-433 base station (433 MHz) – radio receiver and charger in one: charges the scanner and sends its data to your PC or POS (USB, USB-C or RS-232, depending on the cable)

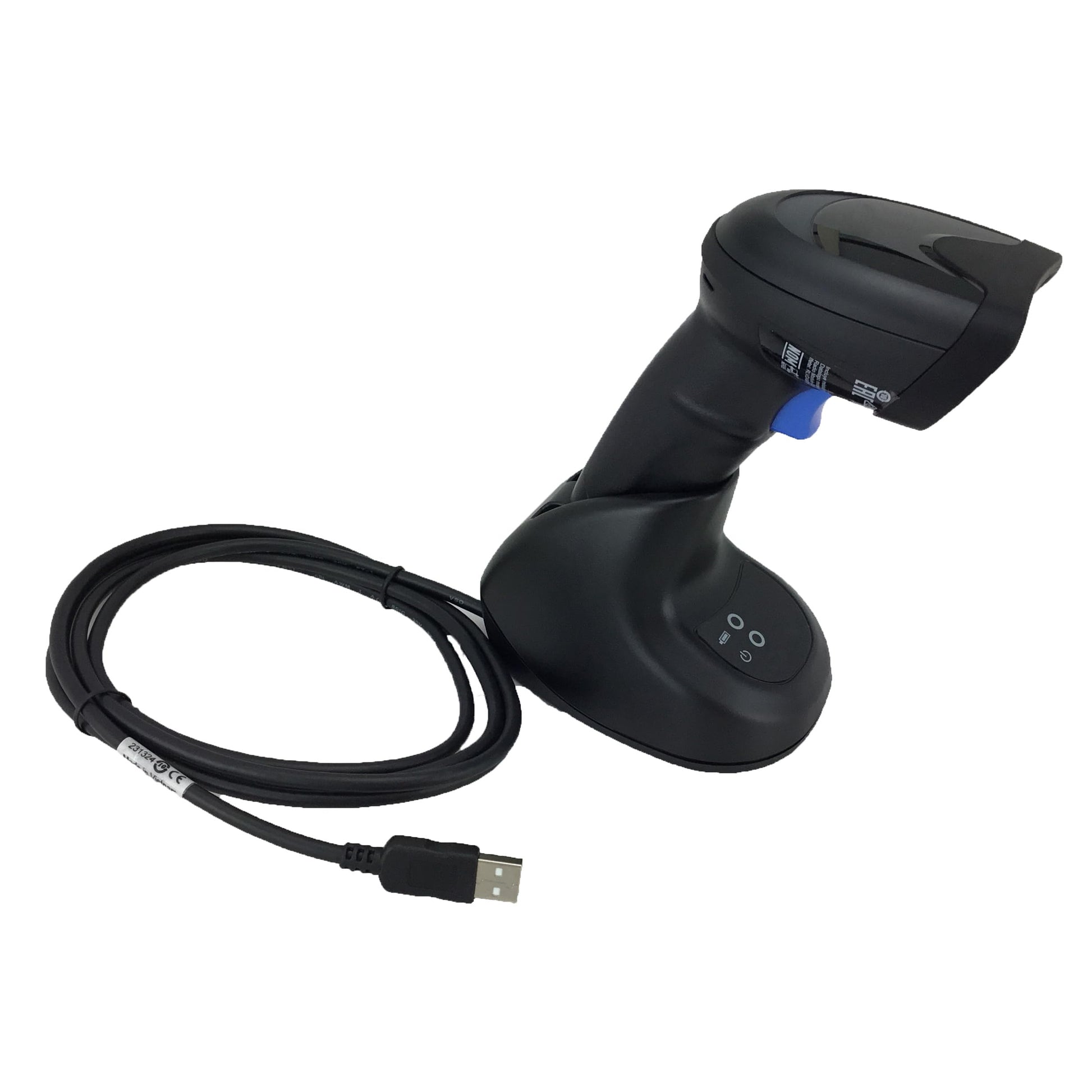

- ✅ USB cable – Type A, straight, 2 m, black, Datalogic 90A052258 – connects and powers the base
- ❌ Power supply – not included – not needed with USB (the base is powered by the host); for faster charging or RS-232 hosts without power on pin 9, add the 90ACC0287 power supply
💡 Linking is simple: place the scanner in the base station and it links automatically – no pairing codes or Bluetooth setup. The QM2500 works only with its 433 MHz STAR base (one scanner per base, up to 30 m in open air); it cannot connect directly to a PC, tablet or smartphone. The scanner can also be charged through its USB-C port.
💡 The base doubles as a charging stand on the counter. Need a wall or desk holder, or a second battery for multi-shift use? Add the Datalogic holder HLD-Q040-BK or a spare battery RBP-QBT25-BK.
Key Features
- Interference-free STAR radio – Datalogic's STAR Cordless System on the 433 MHz band with two-way communication and up to 30 m range (open air); it is not disturbed by busy Bluetooth and Wi-Fi traffic and is less sensitive to obstacles.
- All-day battery – removable 3250 mAh Li-ion pack for approx. 115,000 reads per charge; charges in the base or directly through the scanner's USB-C port.
- Reads 1D, 2D and Digimarc codes – omnidirectional reading of linear, 2D, postal, stacked and composite codes plus Digimarc digital watermarks, on paper labels and on phone screens.
- 1 MP high-performance imager – snappy reading with a wide depth of field: up to 51 cm on 13 mil EAN/UPC and down to 3 mil codes.
- Datalogic Green Spot and precision aiming – a sharp blue aiming pattern frames the code and a green light on the barcode confirms every good read, even in noisy environments.
- Motionix motion sensing – switches automatically between handheld and presentation reading modes.
- Easy integration – the BC2090 base offers USB, USB-C and RS-232 multi-interface; free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and remote host download.
- Built to last – withstands repeated 1.5 m drops to concrete, IP52 sealed, trigger rated for 10 million actuations, with a 5-year (60-month) Datalogic warranty.
Ideal Applications
- Retail point of sale – check-out, line busting, loyalty cards and electronic coupons
- Shop floor and back office – price checks, shelf replenishment and goods receiving
- Commercial services – postal, banking, public administration and utilities
- Hospitality and transport – ticketing for events, concerts and travel
- Healthcare – laboratories, pharmacies and patient care; light manufacturing work-in-progress tracking
All QuickScan QM2500 Versions
The highlighted row is the version you are currently viewing.
| Part Number | 433 MHz Base Station | Cable | Works out of the box with | |
|---|---|---|---|---|
| QM2500-BK-433 | ✅ BC2090-BK-433 | — (order separately) | PC or POS once a cable is added | View product |
| QM2500-BK-433K1 (this version) | ✅ BC2090-BK-433 | USB, straight 2 m | PC or POS via USB | Viewing |
Technical Specifications
| Part Number | QM2500-BK-433K1 |
|---|---|
| Model | Datalogic QuickScan QM2500 (QuickScan 2500 series, cordless, Datalogic STAR 433 MHz) |
| Scanner Type | Cordless handheld 2D area imager (reads 1D and 2D barcodes) |
| Image Sensor | 1 MP (1280 × 800 pixels) |
| Light Source | Aiming: 468 nm blue LED; illumination: 617 nm red LED |
| Depth of Field (typical) | Code 39 5 mil: 0.5–25 cm; Code 39 10 mil: 0.5–38 cm; EAN/UPC 13 mil: 0.5–51 cm; Data Matrix 10 mil: 0.5–21.5 cm; PDF417 6.7 mil: 0.5–21 cm; QR Code 20 mil: 0–37 cm |
| Maximum Resolution | 1D: 3 mil (0.077 mm); PDF417: 3 mil; Data Matrix: 5 mil (0.127 mm); QR Code: 6.7 mil (0.17 mm) |
| Motion Tolerance | 30 IPS (76 cm/s) |
| Minimum Print Contrast | 15% |
| Reading Angles | Pitch ±65°, roll 360°, skew ±65° |
| 1D Symbologies | All standard 1D codes incl. GS1 DataBar linear codes (auto-discrimination) |
| 2D Symbologies | Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode |
| Postal Codes | Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet, Postnet, Royal Mail RM4SCC |
| Stacked / Composite Codes | PDF417, MicroPDF417, MacroPDF, GS1 DataBar stacked / expanded / composite, EAN/UPC composites |
| Digital Watermark | Digimarc Barcode |
| Wireless Communication | Datalogic STAR Cordless System, 433.92 MHz (effective radiated power < 6.3 mW); two-way communication; point-to-point (one scanner per base station) |
| Radio Range | Up to 30 m open air (line of sight) |
| Host Interfaces | BC2090-BK-433 base: USB, USB-C and RS-232 multi-interface (depends on the cable used) |
| Base Station | BC2090-BK-433 base station/charger (433 MHz) included |
| Battery | Removable Li-ion battery pack, 3.6 V, 3250 mAh (11.7 Wh); approx. 115,000 reads per charge |
| Charging Time | In the BC2090-BK-433 base: approx. 4 h with 12 VDC external power (slow charge when powered by the host only); scanner via its USB-C port: approx. 3 h (wall adapter or USB-C host), 5.5 h (USB-A host) |
| Input Voltage | BC2090-BK-433 base: 4.5–14 VDC ±5%, approx. 45 mA at 5 V (base only); powered by the host through the cable or by an optional power supply |
| Reading Indicators | Datalogic Green Spot, good-read LED, beeper (adjustable tone and volume); base: charging (flashing) and charge complete (steady green) LEDs |
| Color | Black |
| Dimensions | Scanner: 15.9 × 6.8 × 10.7 cm |
| Weight | 206.5 g (battery included) |
| Environmental Sealing | IP52 |
| Drop Resistance | Repeated 1.5 m drops to concrete |
| Electrostatic Discharge | 16 kV (air discharge) |
| Ambient Light Immunity | 0–110,000 lux |
| Trigger Life | 10 million actuations |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Datalogic Aladdin configuration tool, OPOS / JavaPOS utilities, remote host download |
| Warranty | 60 months (5-year Datalogic factory warranty) |
| In the Box | QuickScan QM2500 scanner (black, 433 MHz), Li-ion battery pack (3.6 V, 3250 mAh, removable), BC2090-BK-433 base station/charger (433 MHz STAR, USB/USB-C/RS-232 multi-interface), USB cable (Type A, straight, 2 m, black, 90A052258); no power supply (not needed with USB) |
Not sure which version you need? Choose QM2500-BK-433K1 for a ready-to-use USB setup at a checkout or desk, or QM2500-BK-433 if you already have a compatible Datalogic cable or need an RS-232 or USB-C connection. Prefer Bluetooth, so the scanner can also pair with tablets and smartphones? Have a look at the QuickScan QBT2500. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
All Specifications
| Brand | DATALOGIC |
|---|---|
| Model | Datalogic QuickScan QM2500 |
| SKU | QM2500-BK-433K1 |
| Product Type | Version |
| Scanner Type | 2D imager |
| Wireless Communication | 433 MHz (Star) |
| Wired Interface Type | USB, USB-C, RS232 |
| Sealing Rating | IP52 |
| Range from Charging Base | 30m |
| Stand Included | No |
| Interface Cable Included | Yes |
| Charging Base Included | Yes |
| In the Box | QuickScan QM2500 scanner (black, 433 MHz), Li-ion battery pack (3.6 V, 3250 mAh, removable), BC2090-BK-433 base station/charger (433 MHz STAR, USB/USB-C/RS-232 multi-interface), USB cable (Type A, straight, 2 m, black, 90A052258); no power supply (not needed with USB) |
| Minimum Order Quantity | 1 |
| Warranty | 60 months |
| Non Refundable | No |
| Non Returnable | No |
| Weight | 0.64 kg |
| Datasheet | Download PDF |
Available Versions
QM2500-BK-433
433 MHz STAR, 2D imager, black
Includes: BC2090-BK-433 base, 3250 mAh battery
Order separately: interface cable
cordless scanner, 2D, connection: USB, RS232, incl.: charging/transmitter cradle, manual, order separately: interface cable, IP52
QM2500-BK-433K1
Selected
433 MHz STAR, 2D imager, black
Includes: BC2090-BK-433 base, USB cable (2 m), 3250 mAh battery
handheld scanner, 2D, incl.: connection: USB, RS232, IP52, incl.: cable (USB), charging/transmitter cradle, manual
