TSC PEX-1000 Series drukas modulis

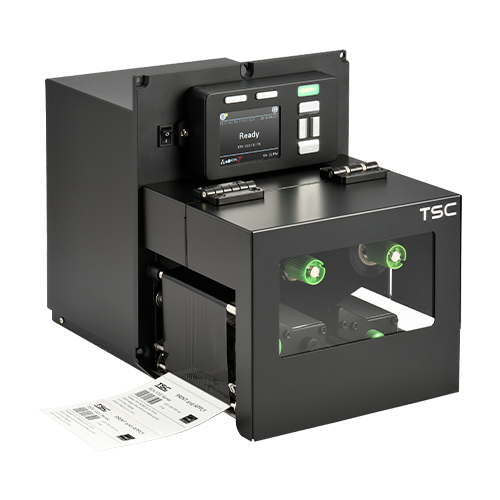

TSC PEX-1000 Series ir 4 collu drukas modulis drukāšanas un uzlīmēšanas sistēmām un automātiskām marķēšanas līnijām, ko iebūvē aplikatorā vai ražošanas iekārtā, nevis novieto uz galda. Mūsu piedāvātās versijas drukā ar termopārnesi un tiešo termodruku ar 203 dpi un 104 mm drukas galviņu, tām ir 3,5 collu krāsu LCD un savienojumi USB, RS232, Ethernet, paralēlais ports un GPIO (DB15F) ports līnijas vadībai.
- 4 collu drukas modulis drukāšanas un uzlīmēšanas sistēmām un marķēšanas līnijām
- Termopārnese un tiešā termodruka ar 203 dpi, 104 mm drukas galviņa
- 3,5 collu krāsu LCD
- USB, RS232, Ethernet, paralēlais ports un GPIO (DB15F) abās versijās
- Kreisās puses PEX-1121 vai labās puses PEX-1221 integratoriem un iekārtu ražotājiem
Thermal transfer203 dpiMaks. drukas platums 104 mm
TSC PEX-1001 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · Right-hand
Preces kods PEX-1221-A001-0002
Thermal transfer203 dpiLCDRight-handUSBRS232EthernetParallel
Ir noliktavā
3.325,14 €+PVN
TSC PEX-1001 · Thermal transfer · 203 dpi · USB + RS232 + Ethernet + Parallel · Left-hand
Preces kods PEX-1121-A001-0002
Thermal transfer203 dpiLCDLeft-handUSBRS232EthernetParallel
Ir noliktavā
3.325,14 €+PVN
Nav filtriem atbilstošu versiju.
| Product | Size (W × H) | Material | Labels / roll | Core | Price | ||
|---|---|---|---|---|---|---|---|
 |
Tsc W: 102 mm38-T102102-10LF | 102 × 102 mm | Thermal Paper | 1700 | 76 mm | 25,00 €+PVNIr noliktavā | |
 |
Tsc W: 102 mm38-G102076-10LF | 102 × 76 mm | Normal Paper | 2300 | 76 mm | 24,43 €+PVNNav noliktavā | View |
 |
Tsc W: 32 mm38-G032020-10LF | 32 × 20 mm | Normal Paper | 7000 | 76 mm | 9,63 €+PVNNav noliktavā | View |
 |
Tsc W: 40 mm38-G040040-10LF | 40 × 40 mm | Normal Paper | 4000 | 76 mm | 11,06 €+PVNNav noliktavā | View |
 |
Tsc W: 47 mm38-G047047-10LF | 47 × 47 mm | Normal Paper | 3000 | 76 mm | 12,03 €+PVNNav noliktavā | View |
 |
Tsc W: 55 mm38-G055070-10LF | 55 × 70 mm | Normal Paper | 2400 | 76 mm | 14,62 €+PVNNav noliktavā | View |
 |
Tsc W: 75 mm38-G075050-10LF | 75 × 50 mm | Normal Paper | 3000 | 76 mm | 19,03 €+PVNNav noliktavā | View |
 |
Tsc W: 90 mm38-G090036-10LF | 90 × 36 mm | Normal Paper | 4000 | 76 mm | 23,74 €+PVNNav noliktavā | View |
 |
Tsc W: 100 mm38-G100050-10LF | 100 × 50 mm | Normal Paper | 3400 | 76 mm | 24,49 €+PVNNav noliktavā | View |
 |
Tsc W: 45 mm38-G045030-10LF | 45 × 30 mm | Normal Paper | 5000 | 76 mm | 12,98 €+PVNNav noliktavā | View |
 |
Tsc W: 50 mm38-G050035-10LF | 50 × 35 mm | Normal Paper | 4000 | 76 mm | 13,76 €+PVNNav noliktavā | View |
 |
Tsc W: 58 mm38-G058075-10LF | 58 × 75 mm | Normal Paper | 2200 | 76 mm | 15,34 €+PVNNav noliktavā | View |
 |
Zebra Z-Perform 1000T76180 | 101.6 × 152.4 mm | Normal Paper | 950 | 76 mm | 22,53 €+PVNIr noliktavā | |
 |
Zebra Z-Select 2000T800630-205 | 76.2 × 50.8 mm | Normal Paper | 3292 | 76 mm | 28,20 €+PVNIr noliktavā | |
 |
Zebra Z-Ultimate 3000T balts880350-152 | 101.6 × 152.4 mm | Synthetic | 950 | 76 mm | 133,81 €+PVNIr noliktavā | |
 |
Zebra Z-Select 2000T76051 | 50.8 × 25.4 mm | Normal Paper | 5180 | 76 mm | 19,50 €+PVNIr noliktavā | |
 |
Zebra Z-Select 2000T3006324 | 57.15 × 31.75 mm | Normal Paper | 5087 | 76 mm | 22,81 €+PVNIr noliktavā | |
 |
Zebra Z-Select 2000T880114-019 | 38.1 × 19.05 mm | Normal Paper | 6742 | 76 mm | 18,37 €+PVNIr noliktavā | |
 |
Zebra Z-Select 2000T76054 | 69.85 × 31.75 mm | Normal Paper | 4240 | 76 mm | 24,37 €+PVNIr noliktavā | |
 |
Zebra Z-Ultimate 3000T76536 | 76.2 × 50.8 mm | Synthetic | 2779 | 76 mm | 121,62 €+PVNIr noliktavā | |
 |
Zebra Z-Ultimate 3000T3010243 | 20 × 10 mm | Synthetic | 14150 | 76 mm | 49,20 €+PVNIr noliktavā | |
 |
Zebra Z-Ultimate 3000T76014 | 69.85 × 31.75 mm | Synthetic | 4295 | 76 mm | 100,31 €+PVNIr noliktavā | |
 |
Zebra Z-Ultimate 3000T76535 | 50.8 × 25.4 mm | Synthetic | 5249 | 76 mm | 79,11 €+PVNIr noliktavā | |
 |
Zebra Z-Perform 1000T76178 | 88.9 × 25.4 mm | Normal Paper | 5180 | 76 mm | 21,03 €+PVNIr noliktavā | |
 |
Zebra Z-Ultimate 3000T balts87539 | 60 × 30 mm | Synthetic | 5000 | 76 mm | 89,94 €+PVNIr noliktavā | |
 |
Zebra Z-Perform 1000T3005091 | 100 × 150 mm | Normal Paper | 1000 | 76 mm | 25,34 €+PVNIr noliktavā | |
 |
Zebra Z-Perform 1000T76175 | 76.2 × 50.8 mm | Normal Paper | 2740 | 76 mm | 18,16 €+PVNIr noliktavā | |
 |
Zebra Z-Ultimate 3000T880350-050 | 101.6 × 50.8 mm | Synthetic | 2740 | 76 mm | 133,81 €+PVNIr noliktavā | |
 |
Zebra Z-Perform 1000T76173 | 57.15 × 31.75 mm | Normal Paper | 4240 | 76 mm | 15,43 €+PVNIr noliktavā | |
 |
Zebra 8000T Void Matte3006690 | 50.8 × 25.4 mm | Synthetic | 2500 | 76 mm | 99,30 €+PVNIr noliktavā |
No matching products.
| Product | Width | Length | Type | Ink side | Core | Price | ||
|---|---|---|---|---|---|---|---|---|
 |
TSC 8050-SWX vaska lente 110 mm × 300 mP159049-001 | 110 mm | 300 m | Wax | Outside | 25.4 mm | 4,69 €+PVNIr noliktavā | |
 |
TSC 8050-SWX vaska lente 110 mm × 450 mP159079-001 | 110 mm | 450 m | Wax | Outside | 25.4 mm | 7,04 €+PVNIr noliktavā | |
 |
TSC 8580-PWR vaska/sveķu lente 60 mm × 450 mP159064-001 | 60 mm | 450 m | Wax/Resin | Outside | 25.4 mm | 13,23 €+PVNIr noliktavā | |
 |
TSC 8550-SWR vaska/sveķu lente 83 mm × 450 mP159069-001 | 83 mm | 450 m | Wax/Resin | Outside | 25.4 mm | 13,90 €+PVNNav noliktavā | View |
 |
TSC 8600-SRE sveķu lente 110 mm × 300 mP159053-001 | 110 mm | 300 m | Resin | Outside | 25.4 mm | 24,09 €+PVNNav noliktavā | View |
 |
TSC 8580-PWR vaska/sveķu lente 110 mm × 450 mP159082-001 | 110 mm | 450 m | Wax/Resin | Outside | 25.4 mm | 24,26 €+PVNNav noliktavā | View |
 |
TSC 8550-SWR vaska/sveķu lente 110 mm × 300 mP159051-001 | 110 mm | 300 m | Wax/Resin | Outside | 25.4 mm | 12,29 €+PVNNav noliktavā | View |
 |
TSC 8300-PWX vaska lente 110 mm × 300 mP159050-001 | 110 mm | 300 m | Wax | Outside | 25.4 mm | 10,19 €+PVNNav noliktavā | View |
 |
TSC 8300-PWX vaska lente 110 mm × 450 mP159080-001 | 110 mm | 450 m | Wax | Outside | 25.4 mm | 15,27 €+PVNNav noliktavā | View |
 |
TSC 8600-SRE sveķu lente 110 mm × 450 mP159083-001 | 110 mm | 450 m | Resin | Outside | 25.4 mm | 36,15 €+PVNNav noliktavā | View |
 |
TSC 8050-SWX vaska lente 110 mm × 600 mP159130-001 | 110 mm | 600 m | Wax | Outside | 25.4 mm | 9,38 €+PVNNav noliktavā | View |
 |
TSC 8550-SWR vaska/sveķu lente 110 mm × 600 mP159133-001 | 110 mm | 600 m | Wax/Resin | Outside | 25.4 mm | 24,58 €+PVNNav noliktavā | View |
 |
Zebra 2300 vaska lente 110 mm × 450 m02300BK11045 | 110 mm | 450 m | Wax | Outside | 25.4 mm | 12,19 €+PVNIr noliktavā | |
 |
Zebra 2300 vaska lente 110 mm × 300 m02300BK11030 | 110 mm | 300 m | Wax | Outside | 25.4 mm | 8,30 €+PVNIr noliktavā | |
 |
Zebra 3200 vaska/sveķu lente 110 mm × 450 m03200BK11045 | 110 mm | 450 m | Wax/Resin | Outside | 25.4 mm | 25,19 €+PVNIr noliktavā | |
 |
Zebra 2100 vaska lente 106 mm × 450 m02100BK10645 | 106 mm | 450 m | Wax | Outside | 25.4 mm | 13,66 €+PVNIr noliktavā | |
 |
Zebra 5095 sveķu lente 110 mm × 450 m05095BK11045 | 110 mm | 450 m | Resin | Outside | 25.4 mm | 51,67 €+PVNIr noliktavā | |
 |
Zebra 3200 vaska/sveķu lente 110 mm × 300 m03200BK11030 | 110 mm | 300 m | Wax/Resin | Outside | 25.4 mm | 16,98 €+PVNIr noliktavā | |
 |
Zebra 5095 sveķu lente 110 mm × 300 m05095BK11030 | 110 mm | 300 m | Resin | Outside | 25.4 mm | 34,59 €+PVNIr noliktavā | |
 |
Zebra 2100 vaska lente 110 mm × 450 m02100BK11045 | 110 mm | 450 m | Wax | Outside | 25.4 mm | 14,18 €+PVNIr noliktavā | |
 |
Zebra 4800 sveķu lente 110 mm × 450 m04800BK11045 | 110 mm | 450 m | Resin | Outside | 25.4 mm | 35,90 €+PVNIr noliktavā | |
 |
Zebra 3400 vaska/sveķu lente 110 mm × 450 m03400BK11045 | 110 mm | 450 m | Wax/Resin | Outside | 25.4 mm | 19,98 €+PVNIr noliktavā | |
 |
Zebra 2300 vaska lente 110 mm × 300 m02300GT11030 | 110 mm | 300 m | Wax | Outside | 25.4 mm | 8,72 €+PVNIr noliktavā | |
 |
Zebra 2300 vaska lente 102 mm × 450 m02300BK10245 | 102 mm | 450 m | Wax | Outside | 25.4 mm | 11,30 €+PVNIr noliktavā | |
 |
Zebra 2300 vaska lente 60 mm × 450 m02300BK06045 | 60 mm | 450 m | Wax | Outside | 25.4 mm | 6,65 €+PVNIr noliktavā |
No matching products.
| Product | Price | ||
|---|---|---|---|
 |
TSC Print HeadsPH-PEX-1001-0001 | 494,88 €+PVNNav noliktavā | View |
 |
Cleaning Kits36-0000010-00LF | 24,38 €+PVNIr noliktavā |
No matching products.
Kuru versiju izvēlēties?
| Modelis | Montāža | Daļas numurs |
|---|---|---|
| PEX-1121 | Kreisās puses | PEX-1121-A001-0002 |
| PEX-1221 | Labās puses | PEX-1221-A001-0002 |
Citādi abas versijas ir vienādas: kreisās un labās puses moduļi ir viena otras spoguļattēls, tāpēc izvēlieties to, kas atbilst līnijas pusei, kurā modulis tiks uzstādīts. Rezerves drukas galviņas pieejamas kā piederumi.
PEX-1000 vai PEX-2000?
Izvēlieties PEX-1000 Series, ja pietiek ar 4 collu etiķetēm ar 203 dpi. Izvēlieties TSC PEX-2000 Series, ja nepieciešams 300 vai 600 dpi vai 6 collu drukas platums.
Visi tālāk norādītie PEX-1000 Series drukas moduļi ir CE sertificēti, un tiem ir ražotāja garantija. Izvēlieties lenti atbilstoši etiķetes materiālam — skatiet mūsu lentes un etiķetes.
